SEET4(2.5)-W YBM251(10 pieces)
Product Description
Part Number: SEET4(2.5)-W YBM251
ISO Type: SEET12T3-W YBM251
Edge Design: Wiper. Grade: YBM251
Grade Description: CVD TiCN + Al2O3 + TiN coating on high-strength carbide
Workpiece Material (ISO): Steels (P15-P40), Stainless Steels (M10-M30)

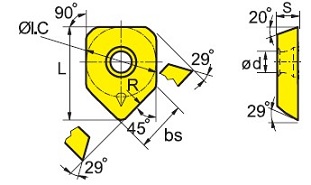

Dimension (inch): L=0.702, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.372, R=19.685
Application: With high-toughness carbide substrate and strong CVD coating, this insert with wiper design is suitable for finish to semi-finish face milling of steels and stainless steels at high speeds.
Note: Product sold in packs of 10 units.
ISO Type: SEET12T3-W YBM251
Edge Design: Wiper. Grade: YBM251
Grade Description: CVD TiCN + Al2O3 + TiN coating on high-strength carbide
Workpiece Material (ISO): Steels (P15-P40), Stainless Steels (M10-M30)
Dimension (inch): L=0.702, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.372, R=19.685
Application: With high-toughness carbide substrate and strong CVD coating, this insert with wiper design is suitable for finish to semi-finish face milling of steels and stainless steels at high speeds.
Note: Product sold in packs of 10 units.
