DCLNR16-3D
Product Description
Part Number: DCLNR16-3D
Clamping Type: Double-Clamp Type (D)
Cutting Direction: Right Hand
Tool Cutting Edge Angle: 95°

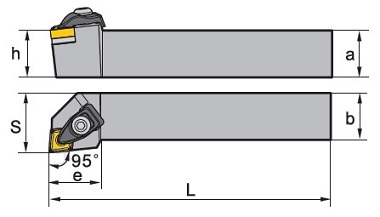

Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=0.945
Application:
High strength and precision toolholder for general purpose external turning and facing from light roughing to finishing with CNMG32_ negative inserts.
Associated Inserts: CNMG32x
Associated Accessories: Clamping Screw CM5*22C, Shim C09BM, Wrench WH30L, Clamp C1RA, Shim Screw SM5*8.65XA1, Spring SPR6
Note: Toolholder is sold with a set of accessories, but does not include inserts.
Clamping Type: Double-Clamp Type (D)
Cutting Direction: Right Hand
Tool Cutting Edge Angle: 95°
Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=0.945
Application:
High strength and precision toolholder for general purpose external turning and facing from light roughing to finishing with CNMG32_ negative inserts.
Associated Inserts: CNMG32x
Associated Accessories: Clamping Screw CM5*22C, Shim C09BM, Wrench WH30L, Clamp C1RA, Shim Screw SM5*8.65XA1, Spring SPR6
Note: Toolholder is sold with a set of accessories, but does not include inserts.
