DCLNR16-4D
Product Description
Part Number: DCLNR16-4D
Clamping Type: Double-Clamp Type (D)
Cutting Direction: Right Hand
Tool Cutting Edge Angle: 95°

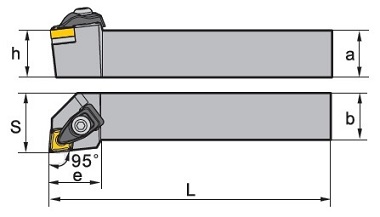

Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=1.102
Application:
High strength and precision toolholder for general purpose external turning and facing from light roughing to finishing with CN__43_ negative inserts.
Associated Inserts: CNEG43x, CNMA43x, CNMG43x, CNMM43x
Associated Accessories: Clamping Screw CM6*25C, Shim C12BM, Wrench WH40L, Clamp C2RA, Shim Screw SM6*10XA1, Spring SPR4
Note: Toolholder is sold with a set of accessories, but does not include inserts.
Clamping Type: Double-Clamp Type (D)
Cutting Direction: Right Hand
Tool Cutting Edge Angle: 95°
Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=1.102
Application:
High strength and precision toolholder for general purpose external turning and facing from light roughing to finishing with CN__43_ negative inserts.
Associated Inserts: CNEG43x, CNMA43x, CNMG43x, CNMM43x
Associated Accessories: Clamping Screw CM6*25C, Shim C12BM, Wrench WH40L, Clamp C2RA, Shim Screw SM6*10XA1, Spring SPR4
Note: Toolholder is sold with a set of accessories, but does not include inserts.
