DCGW2(1.5)0S01020-2 YCB012

DCGW2(1.5)0S01020-2 YCB012
Item# CM-4210002704
Availability: Usually ships in 2-3 business days

Product Description

Part Number: DCGW2(1.5)0S01020-2 YCB012

ISO Type: DCGW070202S01020-2

Number of PCBN Tip: 2, Grade: YCB012

Edge Profile and Finishing: S (standard, chamfering and honing)

Grade Description: Fine carbide substrate brazed with low PCBN content tip

Workpiece Material (ISO Class): Hardened Steel (H05-H15)

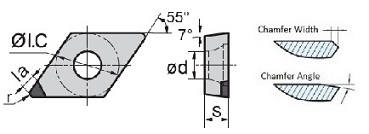

Dimension (inch): ΦI.C.=0.250, S=0.094, Φd=0.110, r=0.008, la=0.106

Chamfer Width: 0.004, Chamfer Angle: 20˚

Application: This positive insert has double brazed PCBN tips with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC with improved productivity.
