DDJNL20-4E-3

DDJNL20-4E-3
Item# CM-4330002173
$83.00
Availability: Usually ships the same business day

Product Description

Part Number: DDJNL20-4E-3

Type: Double-Clamp for External Turning

Cutting Direction: Left Hand

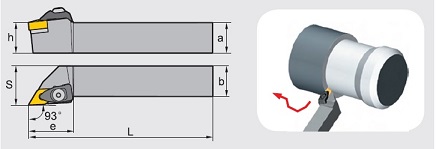

Dimension (inch): a=1.25, b=1.25, L=7.00, h=1.25, S=1.57, e=1.378



Associated Inserts:
  • DNEG43_
  • DNMA43_
  • DNMG431
  • DNMG432
  • DNMG433
  • DNMX43_

    • Associated Accessories:
  • Clamping Screw CM6x25C
  • Shim Seat D15BM
  • Wrench WH40L
  • Clamp C2RA
  • Shim Screw SM6x810XA1
  • Spring SPR4

    • Note: Toolholder is sold with a full set of accessories. Insert is sold separately.
