End Surface Grooving and Turning Tools
Product Description

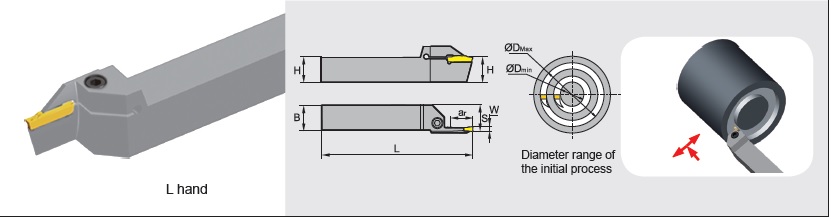

| Part Number | Dimension(in) | |||||
|---|---|---|---|---|---|---|
| HxB | L | S | W | ar | D(min-max) | |
| QFFD16-03DR10-48H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 1.890-2.598 |
| QFFD16-03DR10-60H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 2.362-3.150 |
| QFFD16-03DR10-74H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 2.913-4.331 |
| QFFD16-03DR10-100H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 3.937-5.906 |
| QFFD16-03DR17-48H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 1.890-2.598 |
| QFFD16-03DR17-60H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 2.362-3.150 |
| QFFD16-03DR17-74H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 2.913-4.331 |
| QFFD16-03DR17-100H | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 3.937-5.906 |
| Part Number | Dimension(mm) | |||||
|---|---|---|---|---|---|---|
| HxB | L | S | W | ar | D(min-max) | |
| QFFD2525R10-74H | 25x25 | 150 | 26 | 3 | 10 | 74-110 |
| QFFD2525L17-74H | 25x25 | 150 | 26 | 3 | 17 | 74-110 |
Note:
1. Associated inserts : ZTFD0303-MG Product sold does not include insert
2. Product sold with screw part number GB70-85-M6x20, screw wrench (Part#: WH50L)
3. Contact Customer Service for availability and leadtime of products of types and dimensions not listed above
