L-Type tools for surface grooving and turning
Product Description
| Part Number | Dimension(in) | Insert | |||||
|---|---|---|---|---|---|---|---|

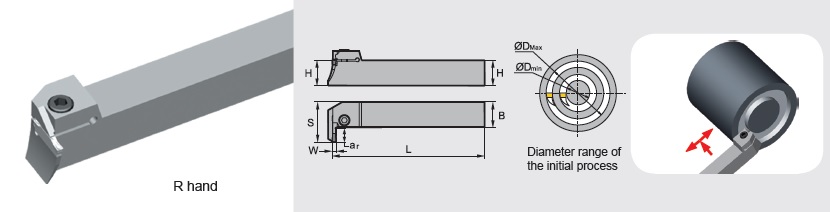

| HxB | L | S | W | ar | D(min-max) | ||
| QFFD16-03DR10-48L | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 1.890-2.598 | ZTFD0303-MG |
| QFFD16-03DR10-74L | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.394 | 2.913-4.331 | ZTFD0303-MG |
| QFFD16-03DR17-48L | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.669 | 1.890-2.598 | ZTFD0303-MG |
| QFFD16-03DL17-60L | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.669 | 2.362-3.150 | ZTFD0303-MG |
| QFFD16-03DL17-74L | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.669 | 2.913-4.331 | ZTFD0303-MG |
| QFFD16-03DL17-100L | 1.000x1.000 | 6 | 1.024 | 0.118 | 0.669 | 3.937-5.906 | ZTFD0303-MG |
| Part Number | Dimension(mm) | Insert | |||||
|---|---|---|---|---|---|---|---|
| HxB | L | S | W | ar | D(min-max) | ||
| QFFD2525R10-48L | 25x25 | 150 | 36.5 | 3 | 10 | 48-66 | ZTFD0303-MG |
| QFFD2525R10-60L | 25x25 | 150 | 36.5 | 3 | 10 | 60-80 | ZTFD0303-MG |
| QFFD2525R10-74L | 25x25 | 150 | 36.5 | 3 | 10 | 74-110 | ZTFD0303-MG |
| QFFD2525L10-74L | 25x25 | 150 | 36.5 | 3 | 10 | 74-110 | ZTFD0303-MG |
| QFFD2525R10-100L | 25x25 | 150 | 36.5 | 3 | 10 | 100-150 | ZTFD0303-MG |
Note:
1. Product sold does not include insert
2. Product sold with screw part number GB70-85-M6x20, screw wrench (Part#: WH50L)
3. Contact Customer Service for availability and leadtime of products of types and dimensions not listed above
