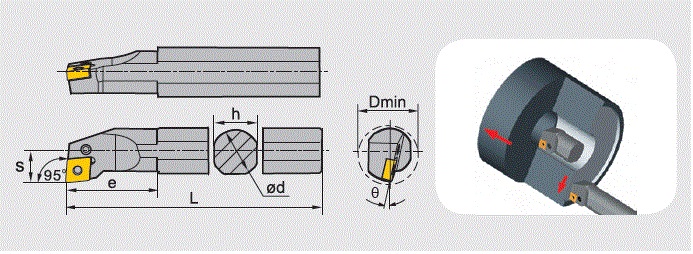

Right/left hand, 95° entering angle, lever clamp type boring bars for internal turning with CN_ _ inserts
PCLNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S16T-PCLNR-3 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-10° |
1.378 |
CN__32__ |
| S16Q-PCLNR-4 |
1.26 |
1.00 |
0.906 |
7 |
0.669 |
-12° |
1.575 |
CN__43__ |
| S16T-PCLNR-4 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-12° |
1.575 |
CN__43__ |
PCLNL Toolholders - Left Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S16Q-PCLNL-4 |
1.26 |
1.00 |
0.906 |
7 |
0.669 |
-12° |
1.575 |
CN__43__ |
|
