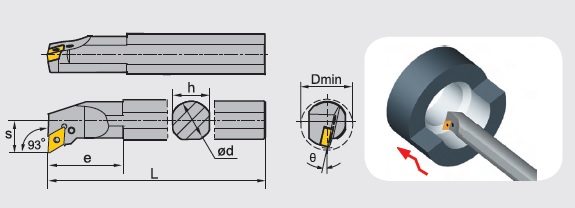

Right/left hand 93° entering angle, lever clamp type boring bars for internal turning with negative DN_ _ inserts
PDUNR Toolholders - Right Hand Cutting Direction
Part Number |
Dimension(inch) |
Applicable Inserts |
D |
d |
h |
L |
s |
Ɵ |
e |
S16Q-PDUNR-3 |
1.26 |
1.00 |
0.906 |
7 |
0.669 |
-13° |
1.378 |
DN__33__ |
S16T-PDUNR-3 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-13° |
1.378 |
DN__33__ |
|
