Precision Grooving and Turning Tools
Product Description
| Product Information Files: Precision Grooving and Turning Tools | |

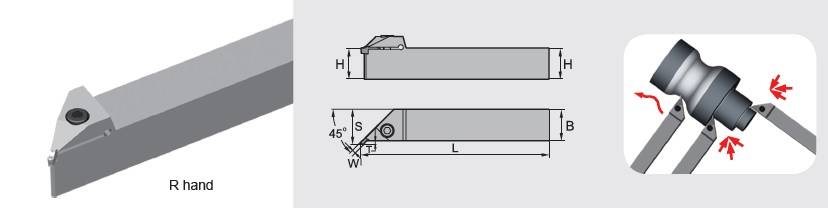

| Part Number | Dimension(in) | Insert | ||||
|---|---|---|---|---|---|---|
| HxB | L | S | W | ar(max) | ||
| QXFD16-03DR03 | 1.000x1.000 | 6 | 1.102 | 0.118 | 0.118 | ZTFD0303-MG, ZRFD0303-MG, ZRFD0303-EG |
| QXGD16-04DR03 | 1.000x1.000 | 6 | 1.102 | 0.157 | 0.118 | ZTGD0404-MG, ZRGD0404-MG, ZRGD0404-EG |
| QXHD16-05DR04 | 1.000x1.000 | 6 | 1.142 | 0.197 | 0.157 | ZTHD0504-MG, ZTHD0504-EG, ZRHD0504-MG |
| QXKD16-06DR04 | 1.000x1.000 | 6 | 1.142 | 0.236 | 0.157 | ZTKD06-MG, ZRKD06-MG |
| Part Number | Dimension(mm) | Insert | ||||
|---|---|---|---|---|---|---|
| HxB | L | S | W | ar(max) | ||
| QXFD2525R03-45 | 25x25 | 150 | 28 | 3.0 | 3.0 | ZTFD0303-MG, ZRFD0303-MG, ZRFD0303-EG |
| QXGD2525R03-45 | 25x25 | 150 | 28 | 4.0 | 3.0 | ZTGD0404-MG, ZRGD0404-MG, ZRGD0404-EG |
| QXHD2525R04-45 | 25x25 | 150 | 29 | 5.0 | 4.0 | ZTHD0504-MG, ZRHD0504-MG |
Note:
1. Product sold does not include insert
2. Product sold with screw part number GB70-85-M6x20, screw wrench (Part#: WH50L)
3. Contact Customer Service for availability and leadtime of products of types and dimensions not listed above
