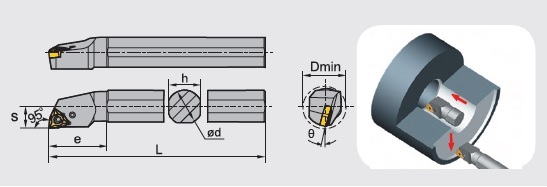

Right/left hand 95° entering angle, lever clamp type boring bars for internal turning with negative WN_ _ inserts
PCLNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S16Q-PWLNR-4 |
1.26 |
1.00 |
0.906 |
7 |
0.669 |
-13° |
1.772 |
WN__43__ |
| S16T-PWLNR-4 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-13° |
1.772 |
WN__43__ |
| A16T-PWLNR-4 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-13° |
1.772 |
WN__43__ |
PCLNL Toolholders - Left Hand Cutting Direction.
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S16T-PWLNL-4 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-13° |
1.772 |
WN__43__ |
| A16T-PWLNL-4 |
1.26 |
1.00 |
0.906 |
12 |
0.669 |
-13° |
1.772 |
WN__43__ |
|
