SCLCR10-3A (RH)

SCLCR10-3A (RH)
Item# CM-4330001303
$34.50
Availability: Usually ships the same business day

Product Description

Part Number: SCLCR10-3A

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

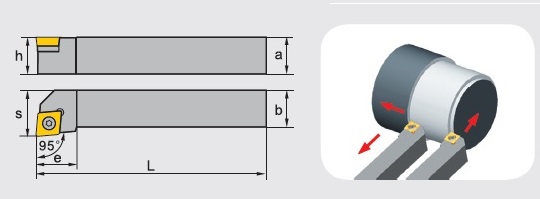

Dimension (inch): a=0.625, b=0.625, L=4.00, h=0.625, s=0.79, e=0.63

Associated Insert Types:

  • CCGT3(2.5)_ inserts

  • CCGX3(2.5)_ inserts

  • CCMT3(2.5)_ inserts

    • Accessories:

  • Clamping Screw: I60M3.5×8

  • Wrench: WT15IP

    • Application: Tool holder for general-purpose external turning with CC_ _ positive inserts.

    Note: Tool holder is sold with a set of accessories, but not inserts.
