SCLCR16-4D (RH)

SCLCR16-4D (RH)
Item# CM-4330001153
$45.50
Availability: Usually ships the same business day

Product Description

Part Number: SCLCR16-4D

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

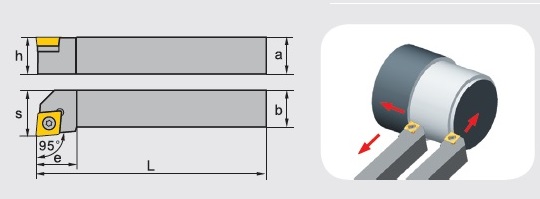

Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=1.02

Associated Insert Types:

  • CCGT43_ inserts

  • CCGX43_ inserts

  • CCMT43_ inserts

    • Accessories:

  • Clamping Screw: I60M4×11X

  • Shim: C12BS

  • Shim Screw: SM6x10XA

  • Wrench: WT15IP

  • Wrench: WT40L

    • Application: Tool holder for general-purpose external turning with CC_ _ positive inserts.

    Note: Tool holder is sold with a set of accessories, but not inserts.
