SDJCR06-2J (RH)

SDJCR06-2J (RH)
Item# CM-4330001328
$28.80
Availability: Usually ships the same business day

Product Description

Part Number: SDJCR06-2J

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

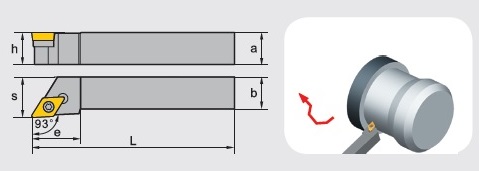

Dimension (inch): a=0.375, b=0.375, L=2.75, h=0.375, s=0.47, e=0.60

Associated Insert Types:

  • DCGT2(1.5)_ inserts

  • DCGX2(1.5)_ inserts

  • DCMT2(1.5)_ inserts

    • Accessories:

  • Clamping Screw: I60M2.5×6.5

  • Wrench: WT07IP

    • Application: Tool holder for general-purpose external turning with DC_ _ positive inserts.

    Note: Tool holder is sold with a set of accessories, but not inserts.
