SDJCR10-2A (RH)

SDJCR10-2A (RH)
Item# CM-4330001326
$40.00
Availability: Usually ships the same business day

Product Description

Part Number: SDJCR10-2A

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

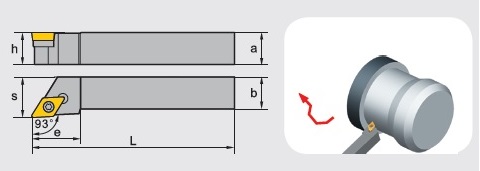

Dimension (inch): a=0.625, b=0.625, L=4.00, h=0.625, s=0.79, e=0.71

Associated Insert Types:

  • DCGT2(1.5)_ inserts

  • DCGX2(1.5)_ inserts

  • DCMT2(1.5)_ inserts

    • Accessories:

  • Clamping Screw: I60M2.5×6.5

  • Wrench: WT07IP

    • Application: Tool holder for general-purpose external turning with DC_ _ positive inserts.

    Note: Tool holder is sold with a set of accessories, but not inserts.
