SDJCR12-3C (RH)

SDJCR12-3C (RH)
Item# CM-4330001325
$41.30
Availability: Usually ships the same business day

Product Description

Part Number: SDJCR12-3C

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

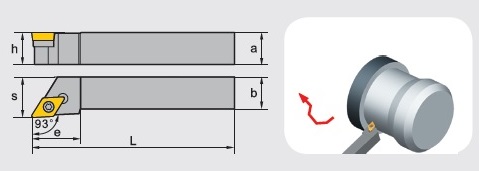

Dimension (inch): a=0.75, b=0.75, L=5.00, h=0.75, s=1.00, e=0.95

Associated Insert Types:

  • DCGT3(2.5)_ inserts

  • DCGX3(2.5)_ inserts

  • DCMT3(2.5)_ inserts

    • Accessories:

  • Clamping Screw: I60M3.5×12

  • Shim: D11BS

  • Shim Screw: SM5×8.65XA

  • Wrench: WT15IP

  • Wrench: WH35L

    • Application: Tool holder for general-purpose external turning with DC_ _ positive inserts.

    Note: Tool holder is sold with a set of accessories, but not inserts.
