SDJCR16-3D (RH)

SDJCR16-3D (RH)
Item# CM-4330001305
$47.05
Availability: Usually ships the same business day

Product Description

Part Number: SDJCR16-3D

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

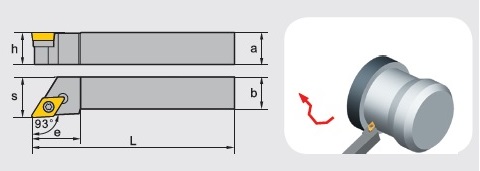

Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=1.14

Associated Insert Types:

  • DCGT3(2.5)_ inserts

  • DCGX3(2.5)_ inserts

  • DCMT3(2.5)_ inserts

    • Accessories:

  • Clamping Screw: I60M3.5×12

  • Shim: D11BS

  • Shim Screw: SM5×8.65XA

  • Wrench: WT15IP

  • Wrench: WH35L

    • Application: Tool holder for general-purpose external turning with DC_ _ positive inserts.

    Note: Tool holder is sold with a set of accessories, but not inserts.
