SNEG1205ANR-GR YBD152 (10 pieces)
Product Description

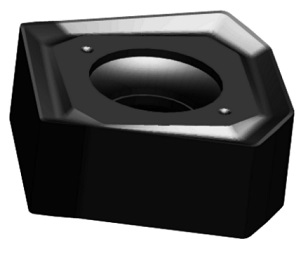

Part Number: SNEG1205ANR-GR YBD152
ISO Type: SNEG1205ANR YBD152
Chip Breaker: GR. Grade: YBD152
Grade Description: CVD TiCN + thick Al2O3 coating on high wear-resistance fine carbide substrate
Workpiece Material (ISO): Cast Irons (K05-K25)
Dimension (inch): L=0.299, ΦI.C.=0.472, S=0.187, bs=0.041, Φd=0.181, r=0.031
Application: The insert with specially designed high-strength 8 cutting edges has excellent combination of edge strength and wear resistance. It is suitable for roughing and semi-finish face milling of cast irons.
Associated Cutters: 2-6 inch cutting diameter and part number including -SN12-
FMA11 Coarse Pitch
FMA11 Close Pitch
Note: Product sold in packs of 10 units.
