SNR0625M03
Product Description
Part Number: SNR0625K02
Type: Internal, Right Hand Threading

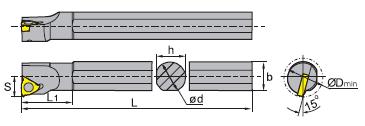

Dimension (inch): d=0.625, L=5, b=0.63, Dmin=0.5, S=0.394, h=0.591, L1=0.823
Associated Inserts:
ISO Metric threading inserts (Size 16)
UN threading inserts (Size 16)
NPT threading inserts (Size 16)
Partial profile non-cresting threading inserts (Size 16)
Accessories:
| Screw | Shim Seat | Shim Screw | Wrench |
|---|---|---|---|
| I60M3.5x8 | MT16-**M | SM4x8C | WT15IP |
Note: Tool holder sold without inserts. Torque wrench and tightening screws included.
