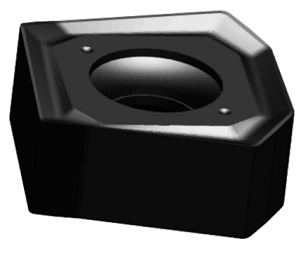

SNEG1506ANR-GM YBM253 (10 pieces)
Product Description
Part Number: SNEG1506ANR-GM YBM253
ISO Type: SNEG1506ANR-GM YBM253
Chip Breaker: GM. Grade: YBM253
Grade Description: CVD TiCN + thin Al2O3 coating on high-toughness carbide substrate.
Workpiece Material (ISO): Stainless Steels (M10-M30)
Dimension (inch): L=0.370, ΦI.C.=0.591, S=0.218, bs=0.051, Φd=0.217, r=0.035
Application: The insert with specially designed high-strength 8 cutting edges has excellent combination of edge strength and wear resistance. It is suitable for semi-finish face milling of stainless steels.
Associated Cutters: 2”-12” cutting diameter and part number including ‘-SN15-’
FMA11 Coarse Pitch
FMA11 Close Pitch
Note: Product sold in packs of 10 units.
ISO Type: SNEG1506ANR-GM YBM253
Chip Breaker: GM. Grade: YBM253
Grade Description: CVD TiCN + thin Al2O3 coating on high-toughness carbide substrate.
Workpiece Material (ISO): Stainless Steels (M10-M30)
Dimension (inch): L=0.370, ΦI.C.=0.591, S=0.218, bs=0.051, Φd=0.217, r=0.035
Application: The insert with specially designed high-strength 8 cutting edges has excellent combination of edge strength and wear resistance. It is suitable for semi-finish face milling of stainless steels.
Associated Cutters: 2”-12” cutting diameter and part number including ‘-SN15-’
FMA11 Coarse Pitch
FMA11 Close Pitch
Note: Product sold in packs of 10 units.
