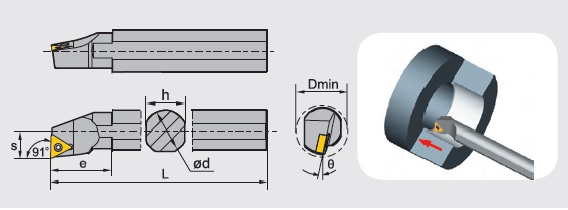

Right/left hand, 90° entering angle, screw-lock type boring bars for internal turning with positive TC_ _ inserts
STFCR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S08M-STFCR-2 |
0.630 |
0.500 |
0.433 |
6 |
0.354 |
-10° |
1.181 |
TC_ _2(1.5)__ |
| S10M-STFCR-2 |
0.787 |
0.625 |
0.591 |
6 |
0.433 |
-6° |
1.378 |
TC_ _2(1.5)__ |
| S12Q-STFCR-2 |
0.984 |
0.750 |
0.709 |
7 |
0.512 |
-3° |
1.417 |
TC_ _2(1.5)__ |
| S12S-STFCR-2 |
0.984 |
0.750 |
0.709 |
10 |
0.512 |
-3° |
1.417 |
TC_ _2(1.5)__ |
| S10R-STFCR-3 |
0.787 |
0.625 |
0.591 |
8 |
0.433 |
-6° |
1.378 |
TC_ _3(2.5)__ |
| S16Q-STFCR-3 |
1.260 |
1.000 |
0.906 |
7 |
0.669 |
-6° |
1.929 |
TC_ _3(2.5)__ |
| S16T-STFCR-3 |
1.260 |
1.000 |
0.906 |
12 |
0.669 |
-6° |
1.292 |
TC_ _3(2.5)__ |
| S20R-STFCR-3 |
1.575 |
1.250 |
1.118 |
14 |
0.866 |
-10° |
1.969 |
TC_ _3(2.5)__ |
| S20U-STFCR-3 |
1.575 |
1.250 |
1.181 |
14 |
0.866 |
-10° |
1.969 |
TC_ _3(2.5)__ |
| S24S-STFCR-3 |
1.969 |
1.500 |
1.457 |
10 |
1.063 |
-8° |
2.362 |
TC_ _3(2.5)__ |
| A08K-STFCR-2 |
0.630 |
0.500 |
0.453 |
5 |
0.354 |
-10° |
1.024 |
TC_ _2(1.5)__ |
| A10M-STFCR-2 |
0.787 |
0.625 |
0.610 |
6 |
0.433 |
-6° |
1.181 |
TC_ _2(1.5)__ |
| A12Q-STFCR-2 |
0.984 |
0.750 |
0.748 |
7 |
0.512 |
-3° |
1.417 |
TC_ _2(1.5)__ |
| A16R-STFCR-3 |
1.260 |
1.000 |
0.946 |
8 |
0.669 |
-6° |
1.772 |
TC_ _3(2.5)__ |
| A20S-STFCR-3 |
1.575 |
1.250 |
1.220 |
10 |
0.866 |
-10° |
1.929 |
TC_ _3(2.5)__ |
STFCL Toolholders - Left Hand Cutting Direction.
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S08M-STFCL-2 |
0.630 |
0.500 |
0.433 |
6 |
0.354 |
-10° |
1.181 |
TC_ _2(1.5)__ |
| S10M-STFCL-2 |
0.787 |
0.625 |
0.591 |
8 |
0.433 |
-6° |
1.378 |
TC_ _2(1.5)__ |
| S10R-STFCL-2 |
0.787 |
0.625 |
0.591 |
8 |
0.433 |
-6° |
1.378 |
TC_ _2(1.5)__ |
| S12S-STFCL-2 |
0.984 |
0.750 |
0.709 |
10 |
0.512 |
-3° |
1.417 |
TC_ _2(1.5)__ |
| S12Q-STFCL-3 |
0.984 |
0.750 |
0.709 |
7 |
0.512 |
-3° |
1.417 |
TC_ _3(2.5)__ |
| S24S-STFCL-3 |
1.969 |
1.500 |
1.457 |
10 |
1.063 |
-8° |
2.362 |
TC_ _3(2.5)__ |
|
