SVJBR16-2D (RH)

SVJBR16-2D (RH)
Item# CM-4330001311
$47.05
Availability: Usually ships the same business day

Product Description

Part Number: SVJBR16-2D

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

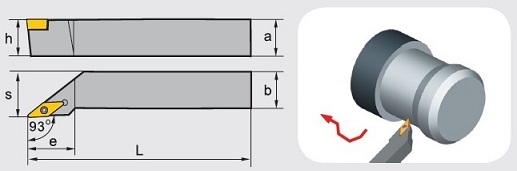

Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=1.06

Application: Tool holder for general-purpose external turning with VBMT2(1.5)_ positive inserts.

Associated Insert Types:

  • VBMT2(1.5)_ inserts

    • Accessories:

  • Clamping Screw: I60M2.5×6.5

  • Wrench: WT07IP

    • Note: Tool holder is sold with a set of accessories, but not inserts.
