SVVBN12-3C (Neutral)

SVVBN12-3C (Neutral)
Item# CM-4330001319
Availability: Usually ships the same business day

Product Description

Part Number: SVVBN12-3C

Type: Screw-Clamp for External Turning

Cutting Direction: Neutral

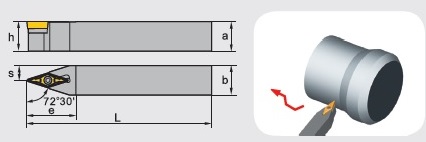

Dimension (inch): a=0.75, b=0.75, L=5.00, h=0.75, s=0.39, e=1.30

Application: Tool holder for general-purpose external turning with VB_ _33_ positive inserts.

Associated Insert Types:

  • VBMT331 carbide inserts
  • VBMT332 carbide inserts
  • VBGW33_ PCBN tipped inserts
  • Accessories:

  • Clamping Screw: I60M3.512
  • Shim: V16BS
  • Shim Screw: SM5x8.65XA
  • Wrench: WT15IP
  • Wrench: WH35L
  • Note: Tool holder is sold with a set of accessories, but not inserts.
