TCGW2(1.5)2S01020 YCB012
Product Description
Part Number: TCGW2(1.5)2S01020 YCB012
ISO Type: TCGW110208S01020
Number of PCBN Tip: 1, Grade: YCB012
Edge Profile and Finishing: S (standard, chamfering and honing)
Grade Description: Fine carbide substrate brazed with low PCBN content tip
Workpiece Material (ISO Class): Hardened Steel (H05-H15)

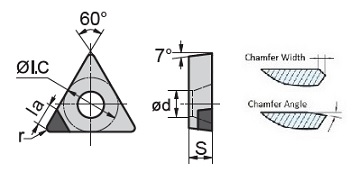

Dimension (inch): ΦI.C.=0.250, S=0.094, Φd=0.110, r=0.031, la=0.087
Chamfer Width: 0.004”, Chamfer Angle: 20˚
Application: This positive insert has a single brazed PCBN tip with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC.
