TNGA332T01515 YCB011
Product Description
Part Number: TNGA332T01515 YCB011
ISO Type: TNGA160408T01515 YCB011
Number of PCBN Tip: 1, Grade: YCB011
Edge Profile and Finishing: T (standard, chamfering)
Grade Description: Fine carbide substrate brazed with high PCBN content tip
Workpiece Material: Cast Iron (K05-K15), Hardened Steel

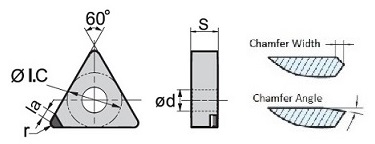

Dimension (inch): ΦI.C.=0.375, S=0.187, Φd=0.150, r=0.031, la=0.087
Chamfer Width: 0.006”, Chamfer Angle: 15˚
Application: This insert has a single brazed PCBN tip that offers superb wear and heat resistance. It is ideal for heavy interrupted turning of cast irons and hardened steels with 45-65 HRC.
ISO Type: TNGA160408T01515 YCB011
Number of PCBN Tip: 1, Grade: YCB011
Edge Profile and Finishing: T (standard, chamfering)
Grade Description: Fine carbide substrate brazed with high PCBN content tip
Workpiece Material: Cast Iron (K05-K15), Hardened Steel
Dimension (inch): ΦI.C.=0.375, S=0.187, Φd=0.150, r=0.031, la=0.087
Chamfer Width: 0.006”, Chamfer Angle: 15˚
Application: This insert has a single brazed PCBN tip that offers superb wear and heat resistance. It is ideal for heavy interrupted turning of cast irons and hardened steels with 45-65 HRC.
