VNGA332S01020-2 YCB012
Product Description
Part Number: VNGA332S01020-2 YCB012
ISO Type: VNGA160408S01020-2
Number of PCBN Tip: 2, Grade: YCB012
Edge Profile and Finishing: S (standard, chamfering and honing)
Grade Description: Fine carbide substrate brazed with low PCBN content tip
Workpiece Material (ISO Class): Hardened Steel (H05-H15)

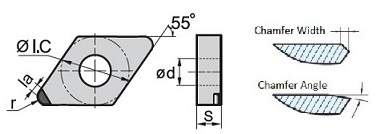

Dimension (inch): ΦI.C.=0.500, S=0.18, Φd=0.203, r=0.031, la=0.098
Chamfer Width: 0.004”, Chamfer Angle: 20˚
Application: This insert has double brazed PCBN tips with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC with improved productivity.
ISO Type: VNGA160408S01020-2
Number of PCBN Tip: 2, Grade: YCB012
Edge Profile and Finishing: S (standard, chamfering and honing)
Grade Description: Fine carbide substrate brazed with low PCBN content tip
Workpiece Material (ISO Class): Hardened Steel (H05-H15)
Dimension (inch): ΦI.C.=0.500, S=0.18, Φd=0.203, r=0.031, la=0.098
Chamfer Width: 0.004”, Chamfer Angle: 20˚
Application: This insert has double brazed PCBN tips with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC with improved productivity.
