VNGA332T01515-2 YCB011
Product Description
Part Number: VNGA332T01515-2 YCB011
ISO Type: VNGA160408T01515-2 YCB011
Number of PCBN Tip: 2, Grade: YCB011
Edge Profile and Finishing: T (standard, chamfering)
Grade Description: Fine carbide substrate brazed with high PCBN content tip
Workpiece Material: Cast Iron (K05-K15), Hardened Steel

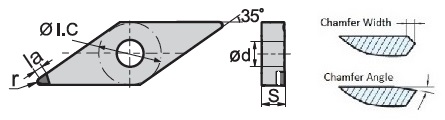

Dimension (inch): ΦI.C.=0.375, S=0.187, Φd=0.150, r=0.031, la=0.098
Chamfer Width: 0.006”, Chamfer Angle: 15˚
Application: This insert has two brazed PCBN tips that offer superb wear and heat resistance. It is ideal for heavy interrupted turning of cast irons and hardened steels with 45-65 HRC with improved productivity.
ISO Type: VNGA160408T01515-2 YCB011
Number of PCBN Tip: 2, Grade: YCB011
Edge Profile and Finishing: T (standard, chamfering)
Grade Description: Fine carbide substrate brazed with high PCBN content tip
Workpiece Material: Cast Iron (K05-K15), Hardened Steel
Dimension (inch): ΦI.C.=0.375, S=0.187, Φd=0.150, r=0.031, la=0.098
Chamfer Width: 0.006”, Chamfer Angle: 15˚
Application: This insert has two brazed PCBN tips that offer superb wear and heat resistance. It is ideal for heavy interrupted turning of cast irons and hardened steels with 45-65 HRC with improved productivity.
