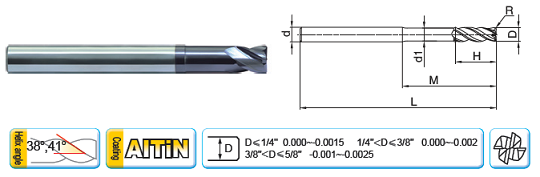

VSM-4RFP
|
Feature: 4-flute long neck and short cutting edge unequal pitch R end mill with straight shank, 38, 41 degree helix Material Grade: KMG405 Coating: AlTiN Application: Unequal pitch and variable inclined angle design very suitable for machining of hard-to-cut materials such as stainless steels, Ni-based high temperature alloys, etc.
|
| Part Number | D | R | d | d(1) | H | M | L |
|---|---|---|---|---|---|---|---|
| VSM-4RFP-1/4" R020 | 1/4 | 0.020 | 1/4 | 15/64 | 3/8 | 1 1/16 | 3 |
| VSM-4RFP-1/4" R040 | 1/4 | 0.040 | 1/4 | 15/64 | 3/8 | 1 1/16 | 3 |
| VSM-4RFP-3/8" R020 | 3/8 | 0.020 | 3/8 | 23/64 | 1/2 | 1 1/2 | 4 |
| VSM-4RFP-3/8" R040 | 3/8 | 0.040 | 3/8 | 23/64 | 1/2 | 1 1/2 | 4 |
| VSM-4RFP-1/2" R020 | 1/2 | 0.020 | 1/2 | 31/64 | 1/2 | 1 1/2 | 4 |
| VSM-4RFP-1/2" R040 | 1/2 | 0.040 | 1/2 | 31/64 | 1/2 | 1 1/2 | 4 |
| VSM-4RFP-5/8" R030 | 5/8 | 0.030 | 5/8 | 39/64 | 3/4 | 2 3/8 | 6 |
| VSM-4RFP-5/8" R060 | 5/8 | 0.060 | 5/8 | 39/64 | 3/4 | 2 3/8 | 6 |
Note:
Contact us at customerservice@carbidemart.com
1. for volume discount.
2. for price and availability of products of other dimensions or custom specification.
