ZSD04-1.594"-XP1.50"-SP11-02
Product Description
Part Number: ZSD04-1.594"-XP1.50"-SP11-02
Length to Diameter Ratio: 4
Mounting Type: Weldon Shank
Cooling Method: Internal cooling

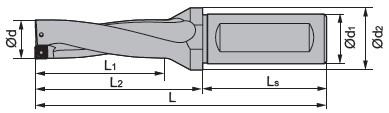

Dimention (inch): d=1.594, d1=1.50, d2=1.85, L1=6.49, L2=7.47, Ls=2.76, L=10.23
Associated Inserts: SPMX110408-XM/LM/EM
Associated Accessories: Screw (I60M4x10), Wrench (WT15IP)
Note: ZSD drill is sold with screw and wrench. Inserts are not included.
Length to Diameter Ratio: 4
Mounting Type: Weldon Shank
Cooling Method: Internal cooling
Dimention (inch): d=1.594, d1=1.50, d2=1.85, L1=6.49, L2=7.47, Ls=2.76, L=10.23
Associated Inserts: SPMX110408-XM/LM/EM
Associated Accessories: Screw (I60M4x10), Wrench (WT15IP)
Note: ZSD drill is sold with screw and wrench. Inserts are not included.
