ZSD05-0.750"-XP1.00"-SP06-02
Product Description
Part Number: ZSD05-0.750"-XP1.00"-SP06-02
Length to Diameter Ratio: 5
Mounting Type: Weldon Shank
Cooling Method: Internal cooling

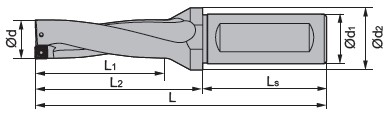

Dimension (inch): d=0.750, d1=1.00, d2=1.26, L1=3.87, L2=4.58, Ls=2.20, L=6.78
Associated Inserts: SPMX060204-XM/LM/EM
Associated Accessories: Screw (I60M2.2x5.5), Wrench (WT07IP)
Note: ZSD drill is sold with screw and wrench. Inserts are not included.
Length to Diameter Ratio: 5
Mounting Type: Weldon Shank
Cooling Method: Internal cooling
Dimension (inch): d=0.750, d1=1.00, d2=1.26, L1=3.87, L2=4.58, Ls=2.20, L=6.78
Associated Inserts: SPMX060204-XM/LM/EM
Associated Accessories: Screw (I60M2.2x5.5), Wrench (WT07IP)
Note: ZSD drill is sold with screw and wrench. Inserts are not included.
