ZSD05-1.125"-XP1.25"-SP09-02
Product Description
Part Number: ZSD05-1.125"-XP1.25"-SP09-02
Length to Diameter Ratio: 5
Mounting Type: Weldon Shank
Cooling Method: Internal cooling

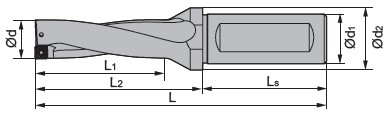

Dimension (inch): d=1.125, d1=1.25, d2=1.46, L1=5.74, L2=6.53, Ls=2.36, L=8.89
Associated Inserts: SPMX090408-XM/LM/EM
Associated Accessories: Screw (I60M3.5x8), Wrench (WT15IP)
Note: ZSD drill is sold with screw and wrench. Inserts are not included.
Length to Diameter Ratio: 5
Mounting Type: Weldon Shank
Cooling Method: Internal cooling
Dimension (inch): d=1.125, d1=1.25, d2=1.46, L1=5.74, L2=6.53, Ls=2.36, L=8.89
Associated Inserts: SPMX090408-XM/LM/EM
Associated Accessories: Screw (I60M3.5x8), Wrench (WT15IP)
Note: ZSD drill is sold with screw and wrench. Inserts are not included.
