ZTD03-0.75"-XP1.00"-SP06-02

Item# CM-4340000241
$232.00
Availability: Usually ships the same business day

Product Description





Part Number: ZTD03-0.75"-XP1.00"-SP06-02

Length to Diameter Ratio: 3

Mounting Type: Weldon Shank

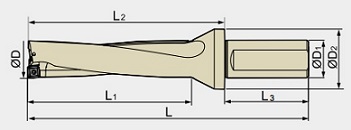

Dimension (inch): d=0.75, d1=1.00, d2=1.26, L1=2.45, L2=2.20, L=5.52

Associated Inserts: SPGT060204-PM

Associated Accessories: Screw (I60M2.2*5.5), Wrench (WT07IP)

Note: ZTD drill is sold with screw and wrench. Inserts are not included.
