Item# ZTD03-125-XP125-SP09-02
Availability: Usually ships in 2-3 business days

Product Description

Part Number: ZTD03-1.250"-XP1.25"-SP09-02

Hole Length to Diameter Ratio: 3

Mounting Type: Weldon Shank

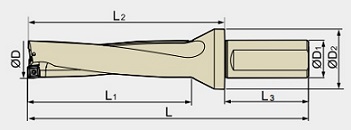

Dimension (inch): ØD=1.25, ØD1=1.25, ØD2=1.46, L2=2.36, L1=3.95, L=7.29

Required Inserts:

One each of SPGT090408-PM YBG205, SPGT090408-PM YBG212 for various metal drilling

One each of SPGT090408-EM YBG205, SPGT090408-EM YBG212 for stainless steel drilling

Associated Accessories:

Screw (I60M3.5x8), Wrench (WT15IP), Connector (ZTD-XP1.25”-NPT)

Note: ZTD drill is sold with with screw and wrench. Inserts are not included.
