Home > Indexable Drills > ZTD Series Indexable Drills (associated inserts: SPGT) > ZTD04 (length to diameter ratio: 4) > ZTD04-1.375"-XP1.50"-SP11-02

ZTD04-1.375"-XP1.50"-SP11-02

Item# CM-4340000362
$290.00
Availability: Usually ships the same business day

Product Description





Part Number: ZTD04-1.375"-XP1.50"-SP11-02

Length to Diameter Ratio: 4

Mounting Type: Weldon Shank

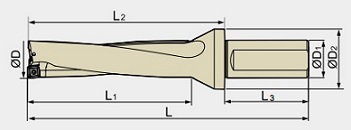

Dimension (inch) : d=1.375, d1=1.50, d2=1.85, L1=7.07, L2=2.76, L=11.01

Associated Inserts: SPGT110408-PM

Associated Accessories: Screw (I60M4*10), Wrench (WT15IP)

Note: ZTD drill is sold with screw and wrench. Inserts are not included.
