Item# ZTD05-0500-XP075-SP05-02
Availability: Usually ships in 2-3 business days

Product Description

Part Number: ZTD05-0.500"-XP0.75"-SP05-02

Hole Length to Diameter Ratio: 5

Mounting Type: Weldon Shank

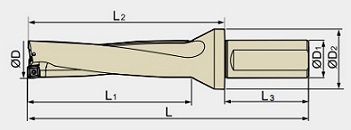

Dimension (inch): ěD=0.500, ěD1=0.75, ěD2=0.98, L2=1.97, L1=2.70, L=5.33

Required Inserts:

One each of SPGT050204-PM YBG205 , SPGT050204-PM YBG212 for various metal drilling

One each of SPGT050204-EM YBG205 , SPGT050204-EM YBG212, for stainless steel drilling

Associated Accessories:

Screw (I60M2x4.3), Wrench (WT06IP)

Note: ZTD drill is sold with with screw and wrench. Inserts are not included.
