VSM-4EFP
|
Feature: 4-flute unequal pitch flattened end mill with long neck, short cutting edge and straight shank, 38, 41-degree helix Material Grade: KMG405 Coating: AlTiN Coating (on Solid Carbide) Application: Unequal pitch and variable inclined angle design ideal for machining of hard-to-cut materials such as stainless steels, Ni-based high temperature alloys.
|

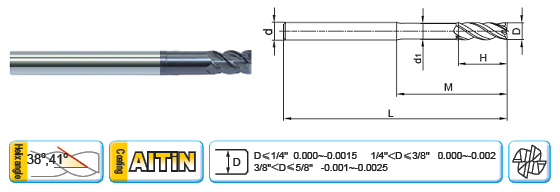

| Part Number | D(inch) | d(inch) | H(inch) | M(inch) | d1(inch) | L(inch) |
|---|---|---|---|---|---|---|
| VSM-4EFP-1/4" | 1/4 | 1/4 | 3/8 | 1 1/16 | 15/64 | 3 |
| VSM-4EFP-3/8" | 3/8 | 3/8 | 1/2 | 1 1/2 | 23/64 | 4 |
| VSM-4EFP-1/2" | 1/2 | 1/2 | 5/8 | 2 | 31/64 | 4 |
| VSM-4EFP-5/8" | 5/8 | 5/8 | 3/4 | 2 3/8 | 39/64 | 6 |
Note:
Contact us at customerservice@carbidemart.com
1. for volume discount.
2. for price and availability of products of other dimensions or custom specification.
