ZRFD03-EG YB9320 (10 pieces)
Product Description
ISO Type: ZRFD03-EG YB9320
Chipbreaker: EG (special chipbreaker for high precision edge)
Grade Description: Nano-structured nc-TiAlN (PVD) coated carbide (nano coating grade)
Workpiece Material (ISO): Stainless Steels (M), Heat-Resistant Alloys and Titanium-Based Alloys (S)

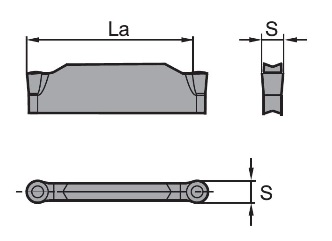

Dimension (inch): S (+/- 0.001)=0.118, La(max)=0.787
Application: This double-edged insert has +/- 0.001” high tolerance on special chipbreaker. With a newly developed PVD coated carbide, this insert is ideal for precision profiling of many hard-to-machine materials such as stainless steels, nickel-based superalloys and titanium-based alloys.
Note: Product sold in packs of 10 units.
