ZTD03-0.563"-XP0.75"-SP05-02

Item# ZTD03-0563-XP075-SP05-02
$197.09
Availability: Usually ships in 2-3 business days

Product Description





Part Number: ZTD03-0.563"-XP0.75"-SP05-02

Hole Length to Diameter Ratio: 3

Mounting Type: Weldon Shank

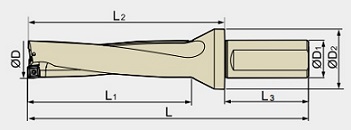

Dimension (inch): D=0.563, D1=0.75, D2=0.98, L2=1.97, L1=1.89, L=4.52

Required Inserts:

One each of SPGT050204-PM YBG212, SPGT050204-PM YBG205 for various metal drilling

One each of SPGT050204-EM YBG212, SPGT050204-EM YBG205 for stainless steel drilling

Associated Accessories:

Screw (I60M2x4.3), Wrench (WT06IP), Connector (ZTD-XP075-NPT)

Note: ZTD drill is sold with screw and wrench. Inserts are not included.

Please click here to go back to ZTD03 main page.
