ZTD04

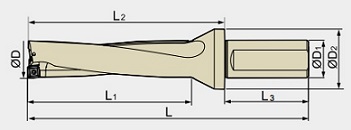

  Dimension in inch
Part Number ěD ěD1 ěD2 L2 L1 L
  ZTD04-0.500"-XP0.75"-SP05-02 0.500 0.75 0.98 1.97 2.20 4.83
  ZTD04-0.531"-XP0.75"-SP05-02 0.531 0.75 0.98 1.97 2.32 4.96
  ZTD04-0.563"-XP0.75"-SP05-02 0.563 0.75 0.98 1.97 2.45 5.09
  ZTD04-0.626"-XP0.75"-SP05-02 0.626 0.75 0.98 1.97 2.70 5.34
  ZTD04-0.688"-XP0.75"-SP06-02 0.688 1.00 1.26 2.20 2.95 6.02
  ZTD04-0.719"-XP1.00"-SP06-02 0.719 1.00 1.26 2.20 3.07 6.14
  ZTD04-0.750"-XP1.00"-SP06-02 0.750 1.00 1.26 2.20 3.20 6.27
  ZTD04-0.781"-XP1.00"-SP06-02 0.781 1.00 1.26 2.20 3.32 6.39
  ZTD04-0.813"-XP1.00"-SP06-02 0.813 1.00 1.26 2.20 3.45 6.52
  ZTD04-0.843"-XP1.00"-SP06-02 0.843 1.00 1.26 2.20 3.57 6.64
  ZTD04-0.875"-XP1.00"-SP07-02 0.875 1.00 1.26 2.20 3.70 6.77
  ZTD04-0.938"-XP1.00"-SP07-02 0.938 1.00 1.26 2.20 3.95 7.02
  ZTD04-1.000"-XP1.00"-SP07-02 1.000 1.00 1.26 2.20 4.20 7.27
  ZTD04-1.031"-XP1.00"-SP07-02 1.031 1.00 1.26 2.20 4.32 7.39
  ZTD04-1.063"-XP1.00"-SP07-02 1.063 1.00 1.46 2.20 4.45 7.52
  ZTD04-1.094"-XP1.25"-SP09-02 1.094 1.25 1.46 2.36 4.57 7.92
  ZTD04-1.125"-XP1.25"-SP09-02 1.125 1.25 1.46 2.36 4.70 8.04
  ZTD04-1.187"-XP1.25"-SP09-02 1.187 1.25 1.46 2.36 4.94 8.29
  ZTD04-1.219"-XP1.25"-SP09-02 1.219 1.25 1.46 2.36 5.07 8.42
  ZTD04-1.250"-XP1.25"-SP09-02 1.250 1.25 1.46 2.36 5.20 8.54
  ZTD04-1.312"-XP1.25"-SP09-02 1.312 1.25 1.46 2.36 5.44 8.79
  ZTD04-1.375"-XP1.50"-SP11-02 1.375 1.50 1.85 2.76 5.70 9.63
  ZTD04-1.406"-XP1.50"-SP11-02 1.406 1.50 1.85 2.76 5.82 9.76
  ZTD04-1.437"-XP1.50"-SP11-02 1.437 1.50 1.85 2.76 5.94 9.88
  ZTD04-1.500"-XP1.50"-SP11-02 1.500 1.50 1.85 2.76 6.20 10.13
  ZTD04-1.625"-XP1.50"-SP11-02 1.625 1.50 1.85 2.76 6.70 10.63
  ZTD04-1.750"-XP1.50"-SP14-02 1.750 1.50 2.24 2.76 7.20 11.53
  ZTD04-1.813"-XP1.50"-SP14-02 1.813 1.50 2.24 2.76 7.45 11.78
  ZTD04-2.000"-XP1.50"-SP14-02 2.000 1.50 2.24 2.76 8.20 12.53
