C0750Q and C20Q Internal grooving and turning tools
Product Description

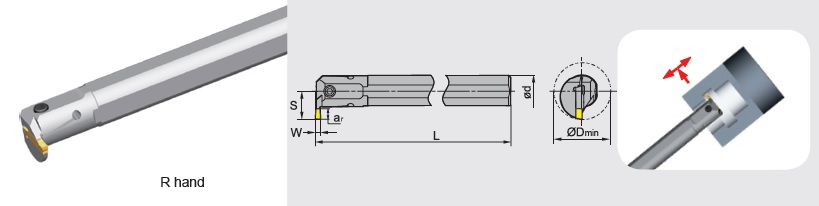

| Part Number | R/L hand | Dimension(in) | Insert | |||||
|---|---|---|---|---|---|---|---|---|
| d | L | S | W | a(max) | D(min) | |||
| C0750Q-QEDR05-27 | Right | 0.750 | 7 | 0.598 | 0.098 | 0.197 | 1.063 | ZTED025 ZRED025 |
| C0750Q-QEDL05-27 | Left | 0.750 | 7 | 0.598 | 0.098 | 0.197 | 1.063 | ZTED025 ZRED025 |
| C0750Q-QFDR05-27 | Right | 0.750 | 7 | 0.598 | 0.118 | 0.197 | 1.063 | ZTFD03 ZRFD03 |
| C0750Q-QFDL05-27 | Left | 0.750 | 7 | 0.598 | 0.118 | 0.197 | 1.063 | ZTFD03 ZRFD03 |
| Part Number | R/L hand | Dimension(mm) | Insert | |||||
|---|---|---|---|---|---|---|---|---|
| d | L | S | W | a(max) | D(min) | |||
| C20Q-QEDR05-27 | Right | 20 | 180 | 15.2 | 2.5 | 5 | 27 | ZTED025 ZRED025 |
| C20Q-QEDL05-27 | Left | 20 | 180 | 15.2 | 2.5 | 5 | 27 | ZTED025 ZRED025 |
| C20Q-QFDR05-27 | Right | 20 | 180 | 15.2 | 3 | 5 | 27 | ZTFD03 ZRFD03 |
| C20Q-QFDL05-27 | Left | 20 | 180 | 15.2 | 3 | 5 | 27 | ZTFD03 ZRFD03 |
Note:
1. Product sold does not include insert
2. Product sold with screw part number GB70-85-M4x12, screw wrench (Part#: WH30L)
3. Contact Customer Service for availability and leadtime of products of types and dimensions not listed above
