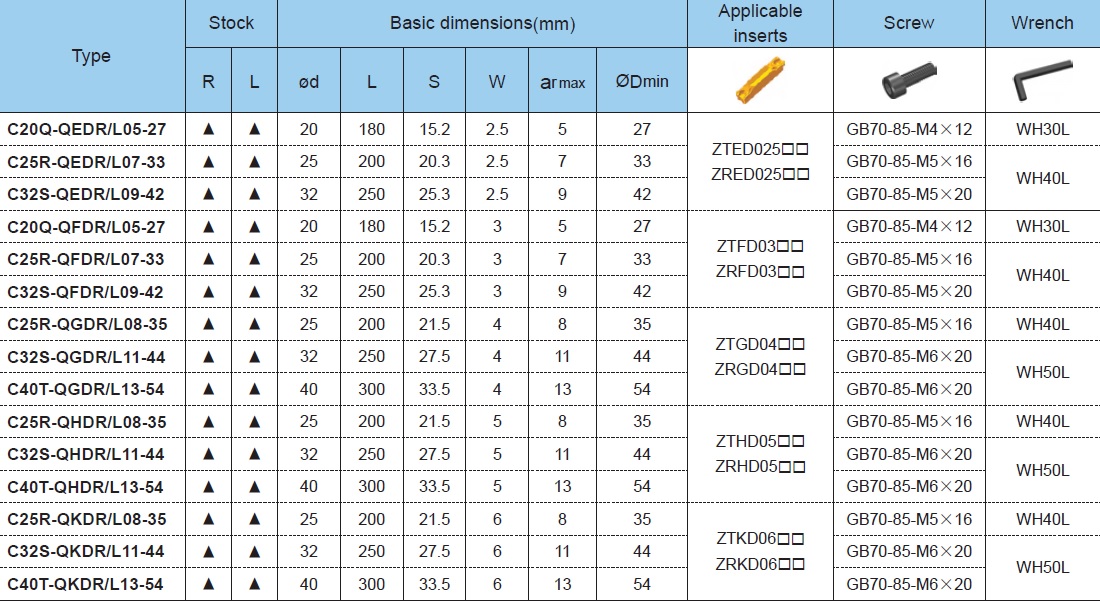

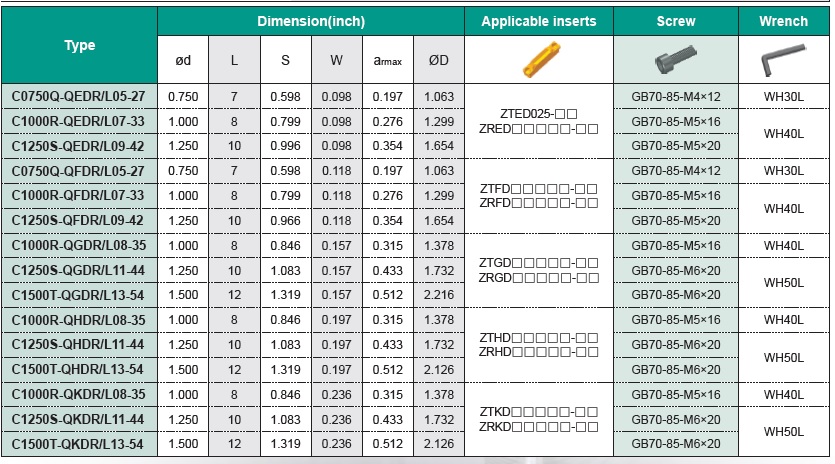

Internal Grooving and Turning Tools


C0750Q and C20Q Internal grooving and turning tools
0.75" (20mm) diameter, 7" (180mm) long, ar(max)=0.197"(5mm), minimum machining diameter=1.063"(27mm), with double cutting-edge internal grooving and turning tools
C1000R(07-33) and C25R(07-33) Internal grooving and turning tools
1" (25mm) diameter, 8" (200mm) long, ar(max)=0.276"(7mm), minimum machining diameter=1.299"(33mm), with double cutting-edge internal grooving and turning tools
C1000R(08-35) and C25R(08-35) Internal grooving and turning tools
1" (25mm) diameter, 8" (200mm) long, ar(max)=0.315"(8mm), minimum machining diameter=1.378"(35mm), with double cutting-edge internal grooving and turning tools
C1250S(09-42) and C32S(09-42) Internal grooving and turning tools
1.25" (32mm) diameter, 10" (250mm) long, ar(max)=0.354"(9mm), minimum machining diameter=1.654"(42mm), with double cutting-edge internal grooving and turning tools
C1250S(11-44) and C32S(11-44) Internal grooving and turning tools
1.25" (32mm) diameter, 10" (250mm) long, ar(max)=0.433"(11mm), minimum machining diameter=1.732"(44mm), with double cutting-edge internal grooving and turning tools
C1500T(13-54) and C40T(13-54) Internal grooving and turning tools
1.50" (40mm) diameter, 12" (300mm) long, ar(max)=0.512"(13mm), minimum machining diameter=2.126"(54mm), with double cutting-edge internal grooving and turning tools
