C1000R(08-35) and C25R(08-35) Internal grooving and turning tools
Product Description

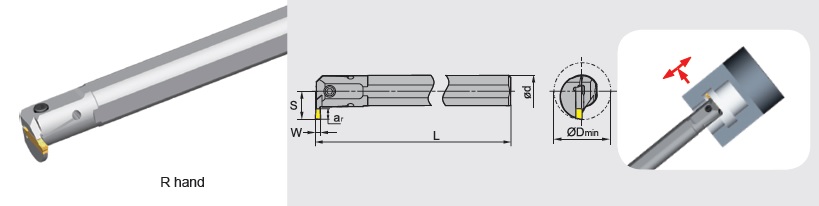

| Part Number | R/L hand | Dimension(in) | Insert | |||||
|---|---|---|---|---|---|---|---|---|
| d | L | S | W | a(max) | D(min) | |||
| C1000R-QGDL-08-35 | Left | 1.000 | 8 | 0.846 | 0.157 | 0.315 | 1.378 | ZTGD04 ZRGD04 |
| C1000R-QHDR08-35 | Right | 1.000 | 8 | 0.846 | 0.197 | 0.315 | 1.378 | ZTHD05 ZRHD05 |
| Part Number | R/L hand | Dimension(mm) | Insert | |||||
|---|---|---|---|---|---|---|---|---|
| d | L | S | W | a(max) | D(min) | |||
| C25R-QGDR08-35 | Right | 25 | 200 | 21.5 | 4 | 8 | 35 | ZTGD04 ZRGD04 |
| C25R-QGDL08-35 | Left | 25 | 200 | 21.5 | 4 | 8 | 35 | ZTGD04 ZRGD04 |
Note:
1. Product sold does not include insert
2. Product sold with screw part number GB70-85-M5x16, screw wrench (Part#: WH40L)
3. Contact Customer Service for availability and leadtime of products of types and dimensions not listed above
