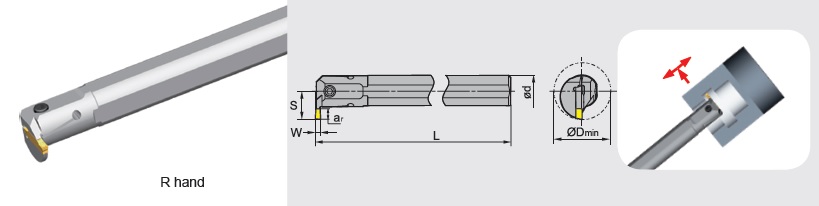

C1250S(11-44) and C32S(11-44) Internal grooving and turning tools

Part Number	R/L hand	Dimension(in)						Insert
		d	L	S	W	a(max)	D(min)
C1250S-QGDR-11-44	Right	1.250	10	1.083	0.157	0.433	1.732	ZTGD04 ZRGD04
C1250S-QGDL-11-44	Left	1.250	10	1.083	0.157	0.433	1.732	ZTGD04 ZRGD04
C1250S-QHDR-11-44	Right	1.250	10	1.083	0.197	0.433	1.732	ZTHD05 ZRHD05
C1250S-QKDR-11-44	Right	1.250	10	1.083	0.236	0.433	1.732	ZTKD06 ZRKD06

Part Number	R/L hand	Dimension(mm)						Insert
		d	L	S	W	a(max)	D(min)
C32S-QGDR11-44	Right	32	250	27.5	4	11	44	ZTGD04 ZRGD04
C32S-QGDL11-44	Left	32	250	27.5	4	11	44	ZTGD04 ZRGD04

Note:

1. Product sold does not include insert

2. Product sold with screw part number GB70-85-M6x20, screw wrench (Part#: WH50L)

3. Contact Customer Service for availability and lead time of products of types and dimensions not listed above
