C1500T(13-54) and C40T(13-54) Internal grooving and turning tools

C1500T(13-54) and C40T(13-54) Internal grooving and turning tools
Item# C1500T-C40T-13-54
$121.00
Part#:
Availability: Usually ships the same business day

Product Description

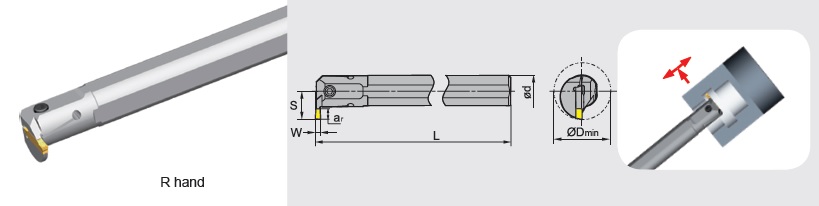

Part Number R/L hand Dimension(in) Insert
d L S W a(max) D(min)
   C1500T-QGDR-13-54 Right 1.50 12 1.319 0.157 0.512 2.126 ZTGD04
ZRGD04
   C1500T-QGDL-13-54 Left 1.50 12 1.319 0.157 0.512 2.126 ZTGD04
ZRGD04
   C1500T-QHDR-13-54 Right 1.50 12 1.319 0.197 0.512 2.126 ZTHD05
ZRHD05
   C1500T-QKDR-13-54 Right 1.50 12 1.319 0.236 0.512 2.126 ZTKD06
ZRKD06
   C1500T-QKDL-13-54 Left 1.50 12 1.319 0.236 0.512 2.126 ZTKD06
ZRKD06

Part Number R/L hand Dimension(mm) Insert
d L S W a(max) D(min)
   C40T-QHDR13-54 Right 40 300 33.5 5 13 54 ZTHD05
ZRHD05
Note:

1. Product sold does not include insert

2. Product sold with screw part number GB70-85-M6x20, screw wrench (Part#: WH50L)

3. Contact Customer Service for availability and lead time of products of types and dimensions not listed above
