DDJNR12-4C

DDJNR12-4C
Item# CM-4330002061
$62.50
Availability: Usually ships the same business day

Product Description

Part Number: DDJNR12-4C

Type: Double-Clamp for External Turning

Cutting Direction: Right Hand

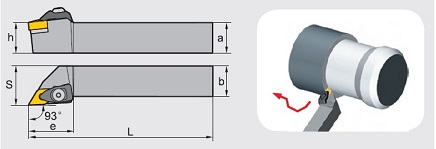

Dimension (inch): a=0.75, b=0.75, L=5.00, h=0.75, S=1.00, e=1.378



Associated Inserts:
  • DNMA44_
  • DNMG441
  • DNMG442
  • DNMG443
  • DNMM44_
  • DNMX44_

    • Associated Accessories:
  • Clamping Screw CM6x25C
  • Shim Seat D15BM
  • Wrench WH40L
  • Clamp C2RA
  • Shim Screw SM6x810XA1
  • Spring SPR4

    • Note: Toolholder is sold with a full set of accessories. Insert is sold separately.
