EMP09-1.00"-XP1.00"-LN08-04C

EMP09-1.00"-XP1.00"-LN08-04C
Item# CM-4350004676
$188.00
Availability: Usually ships the same business day

Product Description

Part Number: EMP09-1.00"-XP1.00"-LN08-04C

Mounting Type: Weldon Shank

Number of Teeth (Z) = 4

Kr=90°

Cooling Type: Internal

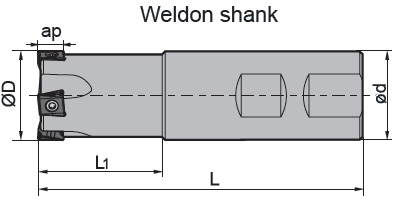

Dimension (inch): D=1.00, d=1.00, L=4.00, L1=1.25, apmax=0.315

Associated Inserts: LNKT0804**-GM/GL

Associated Screw: I60M3x7

Associated Wrench: WT10IS



Note: Milling cutter sold without inserts. Torque wrench and tightening screws included.
