MDJN R/L, Right/Left Hand External Turning Tool Holders for DN_ _ Inserts

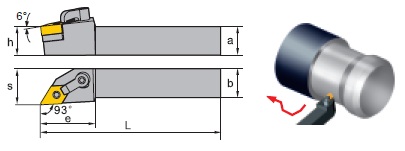

Multi-clamp type toolholders, with negative DN_ _ inserts for external turning and facing
MDJNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MDJNR12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.25 |
DN__33_ |
| MDJNR16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.25 |
DN__33_ |
| MDJNR12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.50 |
DN__44_ |
| MDJNR16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.50 |
DN__44_ |
MDJNL Toolholders - Left Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MDJNL12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.25 |
DN__33_ |
| MDJNL16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.25 |
DN__33_ |
| MDJNL12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.50 |
DN__44_ |
| MDJNL16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.50 |
DN__44_ |
 | $42.63 |
|  | $42.63 |
|  | $42.63 |
|
 | $56.45 |
|  | $42.63 |
|  | $47.22 |
|
 | $47.22 |
|  | $42.63 |
|
 | $47.22 |
|
