MTJN R/L, Right/Left Hand External Turning Tool Holders for TN_ _ Inserts
Multi-clamp type toolholders, with negative TN inserts for external contouring, profiling and facing

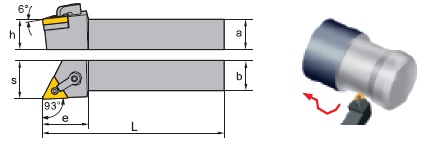

MTJNR Right Hand 93° Tool Holder for TN_ _ Inserts
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MTJNR12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.25 |
TN__33_ |
| MTJNR16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.25 |
TN__33_ |
| MTJNR16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.42 |
TN__44_ |
MTJNL Left Hand 93° Tool Holder for TN_ _ Inserts
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MTJNL12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.25 |
TN__33_ |
| MTJNL16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.42 |
TN__44_ |
 | $38.50 |
|  | $42.50 |
|  | $42.50 |
|
 | $38.50 |
|  | $42.50 |
|
