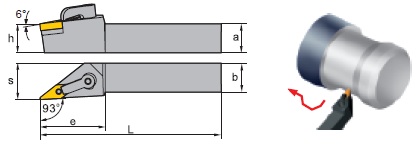

MVJN R/L, Right/Left Hand External Turning Tool Holders for VN_ _ Inserts
Multi-clamp type toolholder, with negative VN_ _ inserts for external turning such as profiling and step surface turning
MVJNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MVJNR12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.77 |
VN__33_ |
| MVJNR16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.77 |
VN__33_ |
| MVJNR20-3E |
1.25 |
1.25 |
7.00 |
1.25 |
1.57 |
1.77 |
VN__33_ |
MVJNL Toolholders - Left Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MVJNL12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.77 |
VN__33_ |
| MVJNL16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.77 |
VN__33_ |
