SCLC R/L

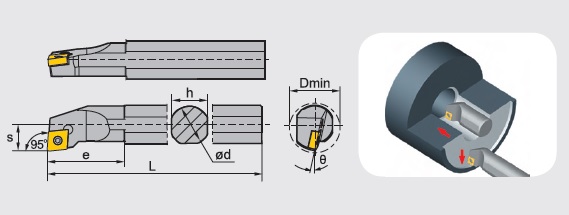

Right/left hand, 95° entering angle, screw-lock type boring bars for internal turning with positive CC_ _ inserts

SCLCR Toolholders - Right Hand Cutting Direction

Part Number Dimension(inch) Applicable Inserts
D d h L s Ɵ e
S05K-SCLCR-2 0.394 0.3125 0.276 5 0.197 -15° 0.551 CC_ _2(1.5)__
S06M-SCLCR-2 0.472 0.375 0.354 6 0.236 -13° 0.551 CC_ _2(1.5)__
S08M-SCLCR-2 0.630 0.500 0.433 6 0.354 -10° 0.984 CC_ _2(1.5)__
S08M-SCLCR-3 0.630 0.500 0.433 6 0.354 -10° 0.984 CC_ _3(2.5)__
S10M-SCLCR-3 0.787 0.625 0.594 6 0.433 -12° 1.280 CC_ _3(2.5)__
S10R-SCLCR-3 0.787 0.625 0.591 8 0.433 -12° 1.280 CC_ _3(2.5)__
S12Q-SCLCR-3 0.787 0.750 0.709 7 0.512 -8° 1.496 CC_ _3(2.5)__
S12S-SCLCR-3 0.984 0.750 0.709 10 0.512 -8° 1.496 CC_ _3(2.5)__
S16Q-SCLCR-3 1.260 1.000 0.906 7 0.669 -6° 1.772 CC_ _3(2.5)__
S16T-SCLCR-3 1.260 1.000 0.906 12 0.669 -6° 1.772 CC_ _3(2.5)__
S16Q-SCLCR-4 1.260 1.000 0.906 7 0.669 -6° 1.772 CC_ _43__
S16T-SCLCR-4 1.260 1.000 0.906 12 0.669 -6° 1.772 CC_ _43__
S20R-SCLCR-4 1.575 1.250 1.118 8 0.866 -10° 1.969 CC_ _43__
S20U-SCLCR-4 1.575 1.250 1.181 14 0.866 -10° 1.969 CC_ _43__
S24S-SCLCR-4 1.969 1.500 1.457 10 1.063 -8° 2.362 CC_ _43__
S24V-SCLCR-4 1.969 1.500 1.457 16 1.063 -8° 2.362 CC_ _43__
A05F-SCLCR-2 0.394 0.315 0.295 3.15 0.197 -15° 0.551 CC_ _2(1.5)__
A06H-SCLCR-2 0.472 0.375 0.374 4 0.236 -13° 0.551 CC_ _2(1.5)__
A08K-SCLCR-2 0.630 0.500 0.453 5 0.354 -10° 0.984 CC_ _2(1.5)__
A08K-SCLCR-3 0.630 0.500 0.453 5 0.354 -10° 0.984 CC_ _3(2.5)__
A10M-SCLCR-3 0.787 0.625 0.610 6 0.433 -12° 1.280 CC_ _3(2.5)__
A12Q-SCLCR-3 0.984 0.750 0.748 7 0.512 -8° 1.496 CC_ _3(2.5)__
A16R-SCLCR-3 1.260 1.000 0.945 8 0.669 -6° 1.772 CC_ _3(2.5)__
A16R-SCLCR-4 1.260 1.000 0.945 8 0.669 -6° 1.772 CC_ _43__
A20S-SCLCR-4 1.575 1.250 1.220 10 0.866 -10° 1.969 CC_ _43__

SCLCL Toolholders - Left Hand Cutting Direction.

Part Number Dimension(inch) Applicable Inserts
D d h L s Ɵ e
S05K-SCLCL-2 0.394 0.3125 0.276 5 0.197 -15° 0.551 CC_ _2(1.5)__
S06M-SCLCL-2 0.472 0.375 0.354 6 0.236 -13° 0.551 CC_ _2(1.5)__
S08M-SCLCL-2 0.630 0.500 0.433 6 0.354 -10° 0.984 CC_ _2(1.5)__
S08M-SCLCL-3 0.630 0.500 0.433 6 0.354 -10° 0.984 CC_ _3(2.5)__
S10R-SCLCL-3 0.787 0.625 0.591 8 0.433 -12° 1.280 CC_ _3(2.5)__
S12Q-SCLCL-3 0.787 0.750 0.709 7 0.512 -8° 1.496 CC_ _3(2.5)__
S12S-SCLCL-3 0.984 0.750 0.709 10 0.512 -8° 1.496 CC_ _3(2.5)__
S16Q-SCLCL-3 1.260 1.000 0.906 7 0.669 -6° 1.772 CC_ _3(2.5)__
S16T-SCLCL-3 1.260 1.000 0.906 12 0.669 -6° 1.772 CC_ _3(2.5)__
A08K-SCLCL-2 0.630 0.500 0.453 5 0.354 -10° 0.984 CC_ _2(1.5)__
A10M-SCLCL-3 0.787 0.625 0.610 6 0.433 -12° 1.280 CC_ _3(2.5)__
A12Q-SCLCL-3 0.984 0.750 0.748 7 0.512 -8° 1.496 CC_ _3(2.5)__
A16R-SCLCL-3 1.260 1.000 0.945 8 0.669 -6° 1.772 CC_ _3(2.5)__



•
